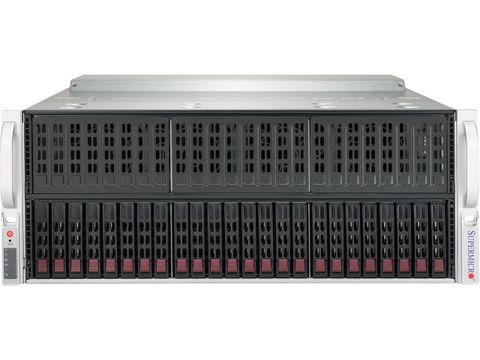

SYS-4029GP-TRT2

171,000,000₫

MỚI 100%

BẢO HÀNH 36 THÁNG

  • Artificial Intelligence, Big Data Analytics, Research Lab / National Lab, Astrophysics and Business Intelligence
  • Dual Socket P (LGA 3647) support
  • 24 x DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz
  • 11 x PCI-E 3.0 x16 (FH, FL) slots, 1 x PCI-E 3.0 x8 (FH, FL in x16 slot)
  • 2 x 10GBase-T LAN ports via Intel C622
  • 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)

LEARN MORE ABOUT THE SUPERMICRO SYS-4029GP-TRT2

Model
BrandSUPERMICRO
ModelSYS-4029GP-TRT2
CPU Supported
CPU TypeDual Socket P (LGA 3647)
2nd Gen. Intel Xeon Scalable Processors (Cascade Lake / Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
CPU SocketDual LGA 3647
Chipset
North BridgeIntel C622
Memory Supported
Max Memory SupportedUp to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666 MHz
Memory Type SupportedDDR4 2933 / 2666 / 2400 / 2133 MHz ECC RDIMM / LRDIMM
ECC SupportedYes
Storage Supported
Serial ATA10 x SATA 600
SATA RAIDRAID 0/1/5/10
Graphics
GPU/VPUAspeed AST2500 BMC
Expansion Slots
PCI Express11 x PCI-E 3.0 x16 (FH, FL) slots
1 x PCI-E 3.0 x8 (FH, FL, in x16) slot
Communications
Number of LANDual Port 10 GbE from C622
Max. LAN SpeedDual 10 Gigabit
Panel Ports
COM1
Rear USB4 x USB 3.0 ports
RJ452 x RJ45 10GBase-T LAN ports
1 x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power2000W Redundant Power Supplies with PMBus
Features
FeaturesDual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake / Skylake)

24 x DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM / LRDIMM, Supports Intel Optane DCPMM

11 x PCI-E 3.0 x16 (FH, FL) slots, 1 x PCI-E 3.0 x8 (FH, FL in x16 slot)

Up to 24 Hot-swap 2.5" drive bays; 10 x 2.5" drives supported natively, 1 x NVMe based M.2 SSD

2 x 10GBase-T LAN ports via Intel C622

8 x Hot-swap 92mm RPM cooling fans

2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
Details
Form Factor4U Rackmount
Dimensions & Weight
Dimensions7.00" x 17.20" x 29.00"
Weight65.50 lbs.
Additional Information
Date First AvailableJune 16, 2019
