Thùng máy CoolerMaster MasterBox 5 MSI Dragon Edition

1,600,000₫
Tình Trạng: Còn Hàng

Tình trạng: Mới 100%

Kho hàng: Còn hàng


Exploring the Interior
The MasterBox 5's design and smartly placed tray cut-outs make light work of installing or expanding multiple interior configurations. Remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling.
FOR MOTHERBOARDS
Expanding the Possibilities
Motherboard tray cut-outs creatively rearrange space for any size motherboard
MINI ITX

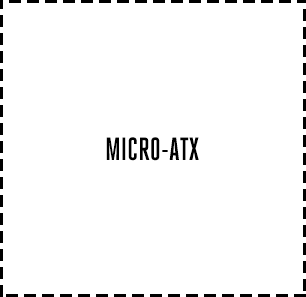

Micro-ATX

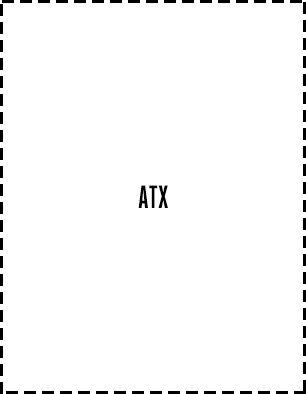

ATX

*Each slot supports one motherboard type
Expanding the Possibilities
FOR STORAGE
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and HDDs across the motherboard tray, along the bottom shelf, or on the back side of the tray (for SSDs).
Expanding the Possibilities
FOR CPU COOLERS
No pushing! There’s enough elbow room inside, even for beastly coolers.
Unmatched Ventilation
FreeForm enables the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted hard disk drives. There's also support for up to six 140mm fans through the case, unique for a mid-sized tower.
Expanding the Possibilities
FOR GRAPHICS CARDS
Titans have a place inside too. Or your next VR-ready GeForce 1080.
Internal Configuration
YOUR AIR COOLING SET-UP
The uniquely modular design of the MasterBox creates space where there usually isn’t. The case supports
1.Three 120mm fans
2.Four fans with use of optional front bracket
Internal Configuration
YOUR LIQUID COOLING SET-UP
The uniquely modular design of the MasterBox creates space to fit the biggest DIY cooling contraptions.*
*360mm radiator installable with optional front bracket
Clean Cabling
FOR CLEAN ACCESS
All system setups have hidden space for cable management
Easy Fun
Easy Computing
Challenge the confines of the MasterBox 5 by creating intuitive and flexible layouts for components and cables, large or small. Then comes the easy part:building.
Specifications
Product NameMasterBox 5 MSI Edition
Model NumberMCX-B5S2-KWNN-03-MI
Available ColorBlack & Red with MSI logo
MaterialsSteel Body, Plastic Mesh Bezel
Dimensions (LxWxH)500 x 220 x 475 mm
Motherboard SupportATX, Micro-ATX, Mini-ITX
Expansion Slots7
Drive Bays5.25"No
Combo 3.5" / 2.5"2
SSD1
I/O PanelUSB 3.0 x 2, Audio in / out
Pre-installed Fan(s)Rear120mm x 1
Fan SupportFront120mm x 3 / 140mm x 2
Rear120mm x 1
Liquid Cooling SupportFront240mm / 280mm / 360mm radiator, up to 50mm thickness without fan
Rear120mm x 1
ClearanceCPU Cooler167mm / 6.5"
PSU180mm / 7.1"
Graphics Card410mm / 16.1"
Cable RoutingBehind Motherboard Tray25mm - 35mm
Power Supply SupportBottom mount, ATX
Dust FiltersBottom
EAN Code4719512058459
UPC Code884102031250
