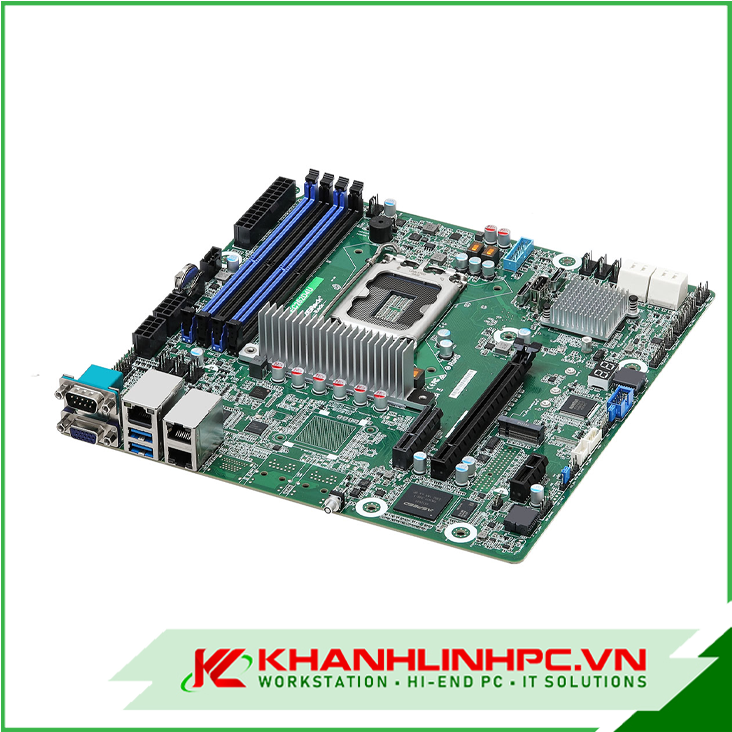

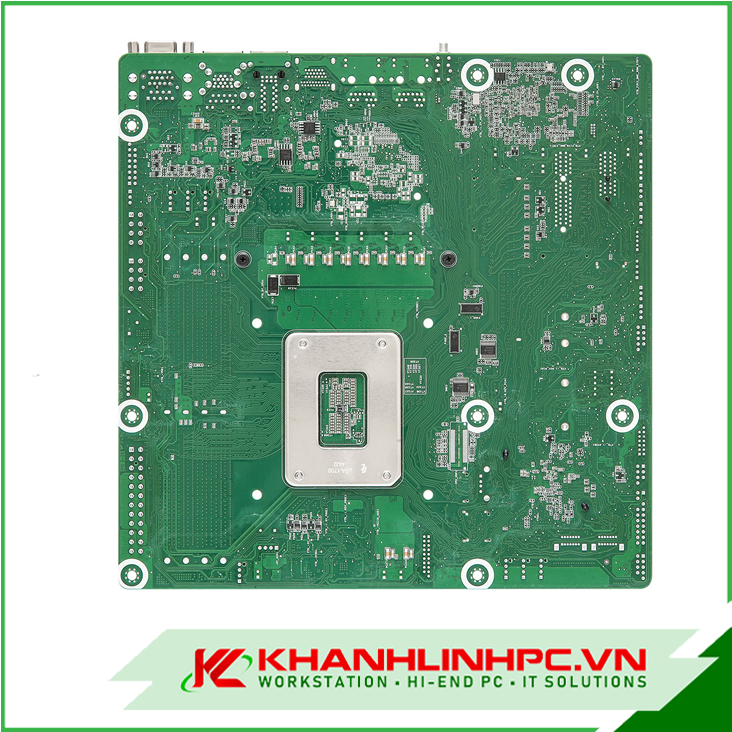

Mainboard ASRock Rack EC262D4U (Single Socket LGA 1700)

Liên hệ

Thông tin cơ bản:

- Chuẩn mainboard: Micro-ATX (9.6" x 9.6")
- Hỗ trợ CPU: Intel Xeon 6300-series, Xeon E-2400 series, Pentium Gold G7400 / G7400T
- RAM: 4 khe DIMM (2DPC), hỗ trợ DDR5 ECC UDIMM
- Khe mở rộng: 1 x PCIe 5.0 x16 / 1 x PCIe 4.0 x4 / 1 x PCIe 4.0 x1
- Kết nối lưu trữ: 2 x OCuLink / 1 x M.2 (PCIe 4.0 x4) / Tối đa 8 x SATA 6Gb/s
- Mạng: 2 x LAN RJ45 (1GbE) sử dụng Intel i210

Hình Thức Thanh Toán

Yên Tâm Mua Hàng

- Sản Phẩm Chính Hãng

- Đa Dạng Hình Thức Thanh Toán

- Nhiều Dòng Sản Phẩm

- Hỗ Trợ Trả Góp 0%

Chính Sách Giao Hàng

GIAO HÀNG

Miễn phí giao hàng trong nội thành TP.HCM bán kính 5km với hoá đơn trên 5.000.000đ.

ĐỔI TRẢ

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất.

Thông tin Sản Phẩm

Thông số kỹ thuật:

Physical Status
Form Factor	Micro-ATX
Dimensions	9.6'' x 9.6'' (244 mm x 244 mm)
Processor System
CPU	Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
Socket	Single Socket LGA 1700
Thermal Design Power	95W
Chipset	Intel® C262
System Memory
Supported DIMM Quantity	4 DIMM slots (2DPC)
Supported Type	Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM	32GB
Max. DIMM Frequency	4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Voltage	1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16	SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4	SLOT7: PCIe4.0 x4* [CPU] *SLOT7 share lanes with OCuLink4. OCuLink4 will disable when SLOT7 is populated
PCIe x 1	SLOT4: PCIe4.0 x1 [PCH]
TPM
TPM Support	1 (13-pin, SPI)
Other PCIe Expansion Connectors
M.2 slot	1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
OCuLink	1 OCuLink (PCIe4.0 x4)* [CPU] 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] *OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated
SATA/SAS Storage
PCH Built-in Storage	Intel® C262 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 OCuLink
Ethernet
Additional Ethernet Controller	2 RJ45 (1GbE) by Intel® i210
Server Management
BMC Controller	ASPEED AST2600: iKVM, vMedia support
Dedicated IPMI LAN	1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller	ASPEED AST2600: 1 DB15 (VGA)

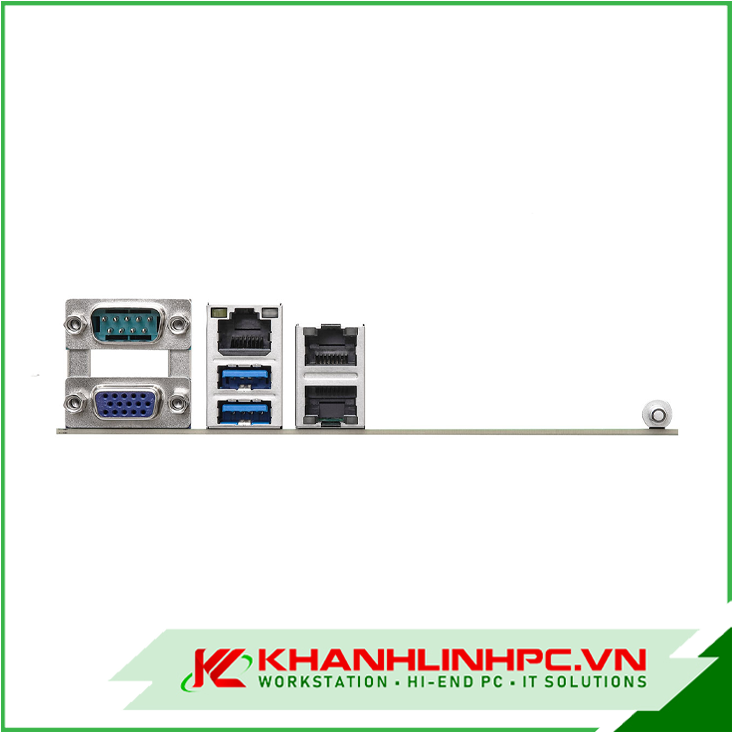

Rear I/O
UID Button/LED	1 UID button w/ LED
Video Port	1 DB15 (VGA)
Serial Port	1 DB9 (COM)
USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
RJ45	2 RJ45 (1GbE), 1 dedicated IPMI
Internal Connector/Headers
Power Connector	1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header	1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel	1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header	1
Speaker Header	1 (4-pin)
Buzzer	1
Fan Header	7 (4-pin)
Thermal Sensor Header	1
TPM Header	1 (13-pin, SPI)
SGPIO Header	1
SMBus header	1
PMBus header	1
IPMB Header	1
Clear CMOS	1 (contact pads)
USB 3.2 (Gen1) Header	1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header	1 header (9-pin, 2 USB2.0)
Type A USB 2.0 Port	1 vertical Type-A (USB2.0)
NMI Header	1
LED Indicators
Standby PWR LED	1 (5VSB)
80 Debug Port LED	1
Fan Fail LED	7
BMC Heartbeat LED	1
System BIOS
BIOS Type	AMI 256Mb SPI Flash ROM
BIOS Features	Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU, MB, Card side, VR, DDR5, PCH, M.2, TR1 Temperature sensing
Fan	Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Supported OS
OS	Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server)
Environment
Temperature	Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Humidity	Non-operating humidity: 20% ~ 90% (non-condensing)

CPU Support List

Socket	Family↓	Number	Core	Frequency	Cache	Power	Since BIOS
1700	Xeon	E-2488(B0)	Raptor Lake-S	3.2GHz	24MB	95W	All
1700	Xeon	E-2486(B0)	Raptor Lake-S	3.5GHz	18MB	95W	All
1700	Xeon	E-2478(B0)	Raptor Lake-S	2.8GHz	24MB	80W	All
1700	Xeon	E-2468(B0)	Raptor Lake-S	2.6GHz	24MB	65W	All
1700	Xeon	E-2456(B0)	Raptor Lake-S	3.3GHz	18MB	80W	All
1700	Xeon	E-2436(B0)	Raptor Lake-S	2.9GHz	18MB	65W	All
1700	Xeon	E-2434(B0)	Raptor Lake-S	3.4GHz	12MB	55W	All
1700	Xeon	E-2414(B0)	Raptor Lake-S	2.6GHz	12MB	55W	All
1700	Pentium Gold	G7400T(H0)	Alder Lake-S	3.1GHz	6MB	35W	All
1700	Pentium Gold	G7400(H0)	Alder Lake-S	3.7GHz	6MB	46W	All
1700	Xeon	6325P(B0)	Raptor Lake-S Refresh	3.5GHz	12MB	55W	10.03
1700	Xeon	6315P(B0)	Raptor Lake-S Refresh	2.8GHz	12MB	55W	10.03
1700	Xeon	6357P(B0)	Raptor Lake-S Refresh	3.0GHz	24MB	80W	10.03
1700	Xeon	6353P(b0)	Raptor Lake-S Refresh	2.7GHz	24MB	65W	10.03
1700	Xeon	6349P(B0)	Raptor Lake-S Refresh	3.6GHz	18MB	95W	10.03
1700	Xeon	6337P(B0)	Raptor Lake-S Refresh	3.5GHz	18MB	80W	10.03
1700	Xeon	6333P(B0)	Raptor Lake-S Refresh	3.1GHz	18MB	65W	10.03
1700	Xeon	6369P(B0)	Raptor Lake-S Refresh	3.3GHz	24MB	95W	10.03

Memory QVL

Type	Speed↓	DIMM	Size↓	Vendor↑	Module	Part No	Cell
DDR5	4800	ECC	32GB	Kingston	KSM48E40BD8KM-32HM	H5CG48MEB0X 014	Hynix
DDR5	4800	ECC	32GB	Micron	MTC20C2085S1EC48BA1	3IA47D8BNJ	Micron
DDR5	4800	ECC	32GB	Samsung	M324R4GA3BB0-CQK0L	K4RAH086VB BCQK	Sec
DDR5	4800	ECC	16GB	Kingston	KSM48E40BS8KM-16HM	H5CG48MEB0X 014	Hynix

HDD QVL

Type	Size	Vendor	Capacity	Model
U.3	2.5"	Micron	6.4TB	9400 MAX-MTFDKCC6T4TGJ
U.3	2.5"	Micron	30TB	6500 ION-MTFDKCC30T7TGR-1BK1JABYY
U.3	2.5"	Micron	15.36TB	7500 PRO-MTFDKCC15T3TGP-1BK1DABYY
U.3	2.5"	Micron	12.8TB	7500 MAX-MTFDKCC12T8TGQ-1BK1DABYY

3D Files

Version	Date	Type	Size	Description	Download From
1.02	10/8/2025	XT	45.23MB	EC262D4U 1.02	Global
1.02	10/8/2025	STP	19.83MB	EC262D4U 1.02	Global

TPM QVL

Type	Interface	Pin	IC	Model
TPM SPI	SPI	13 pin	SLB9672VU20	TPM-SPI/INFINEON*
TPM SPI	SPI	13 pin	SLB9670VQ2.0	TPM-SPI/INFINEON*
