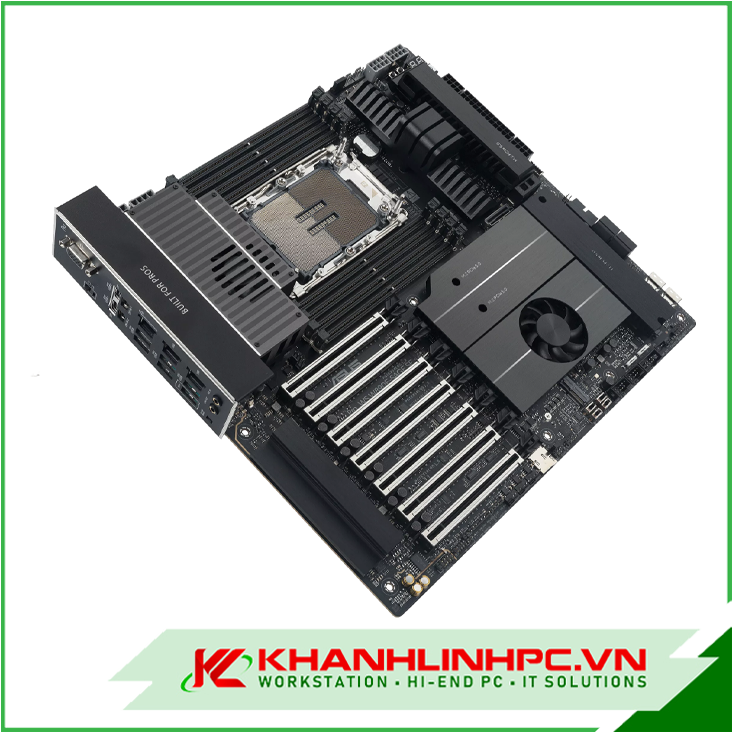

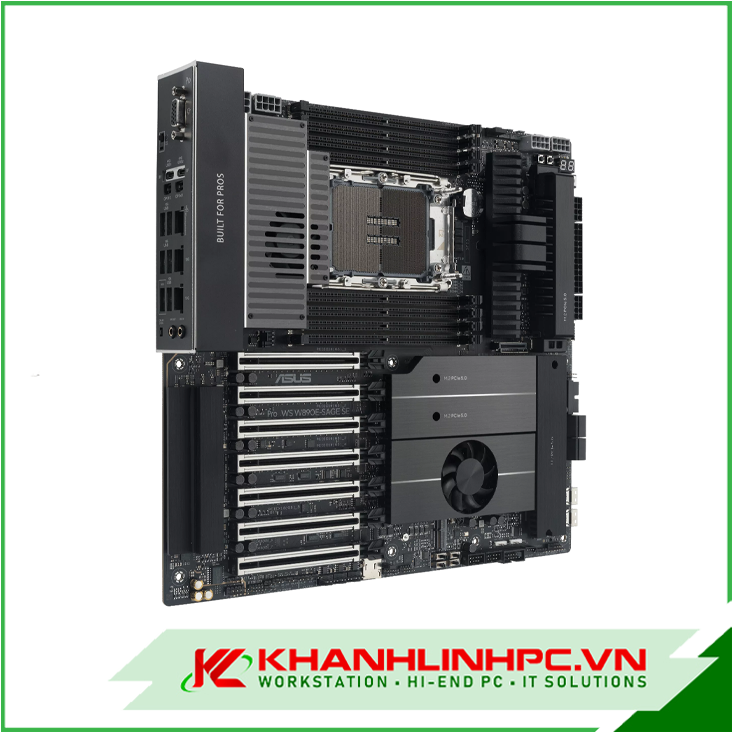

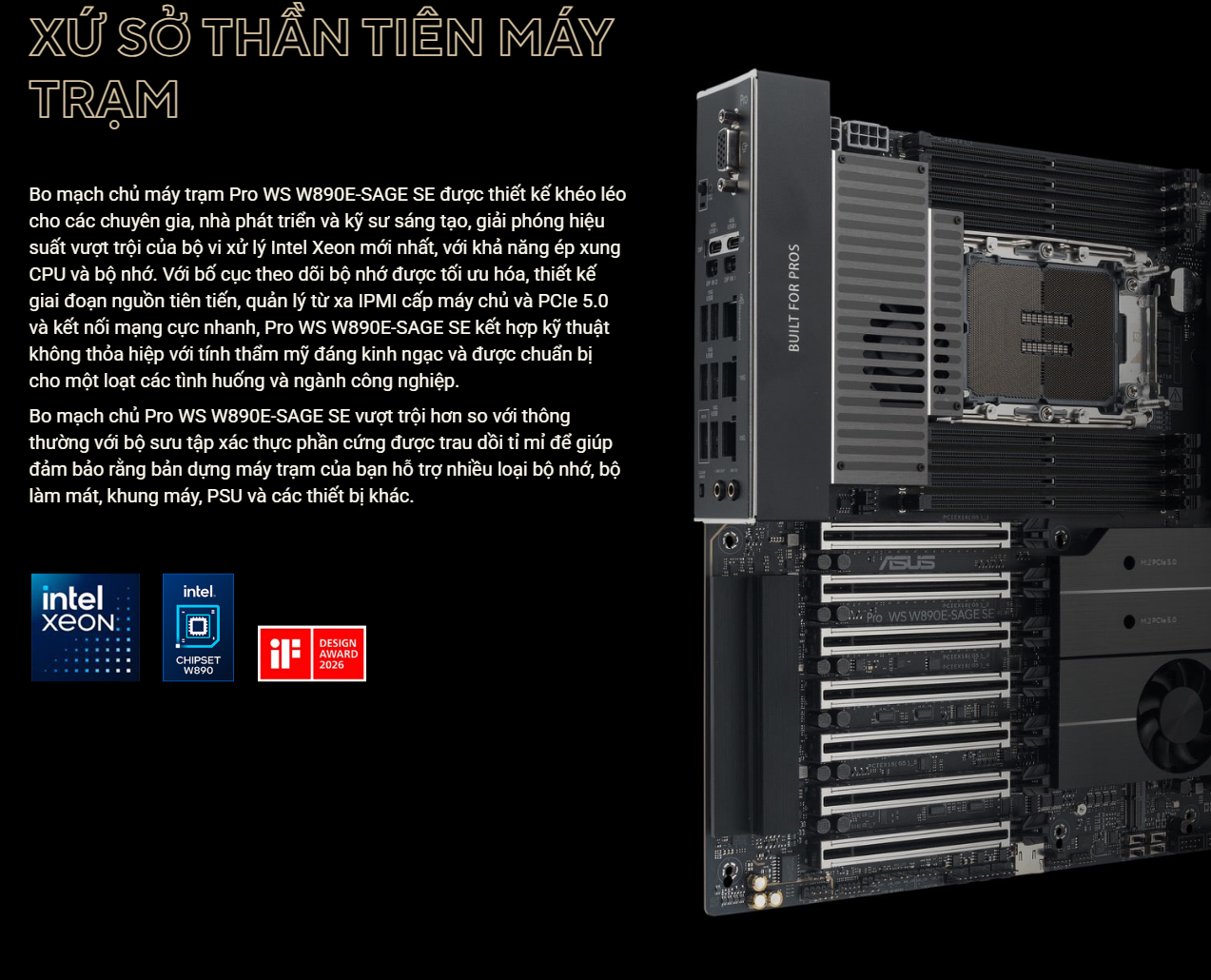

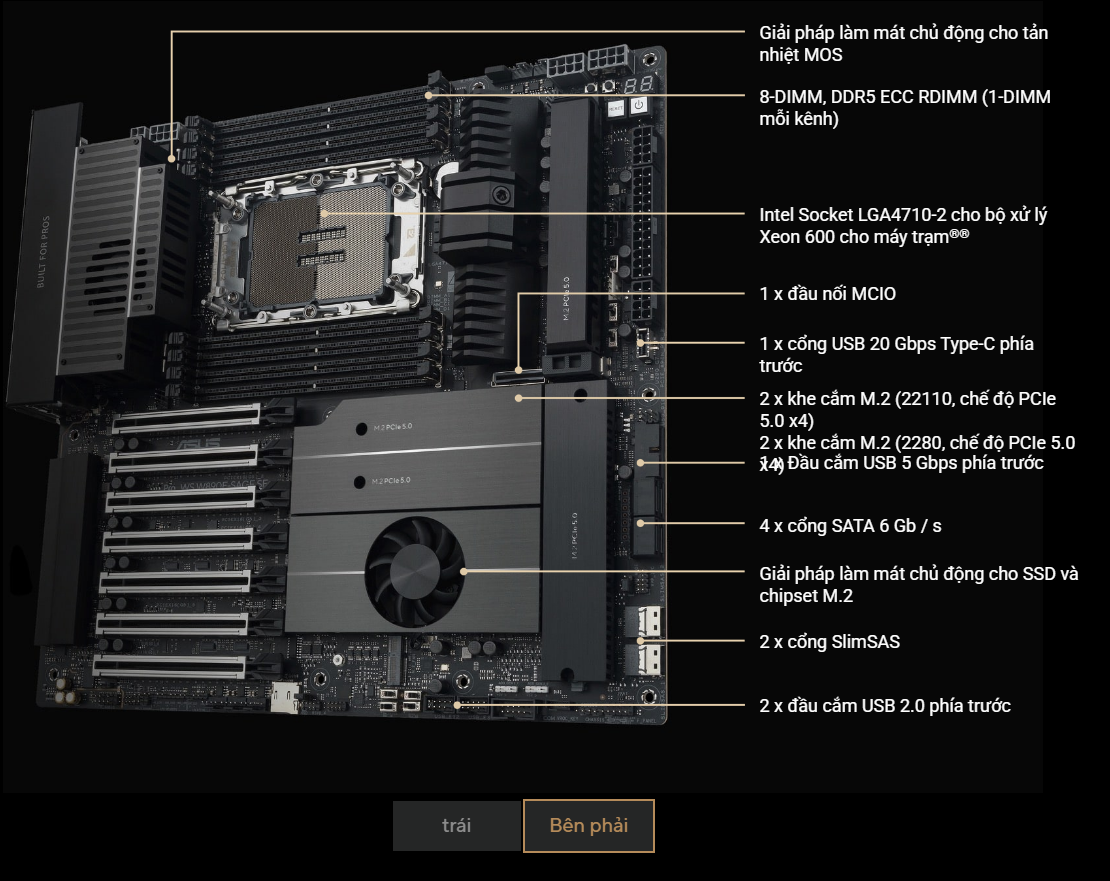

- Intel Socket LGA4710-2 for Xeon 600 Processors for Workstation
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
- * Refer to https://www.asus.com/support/download-center/ for CPU support list.
- ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.®®®®®
|
|
|
|
|
|
- 8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*
- 8-channel memory architecture
- Supports Intel Extreme Memory Profile (XMP) memory module
- * Only channels A, C, E, and G will function when an Intel® Xeon 630 Series Processor is in use.
- ** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.®®
|
|
|
- 1 x VGA port from AST2600

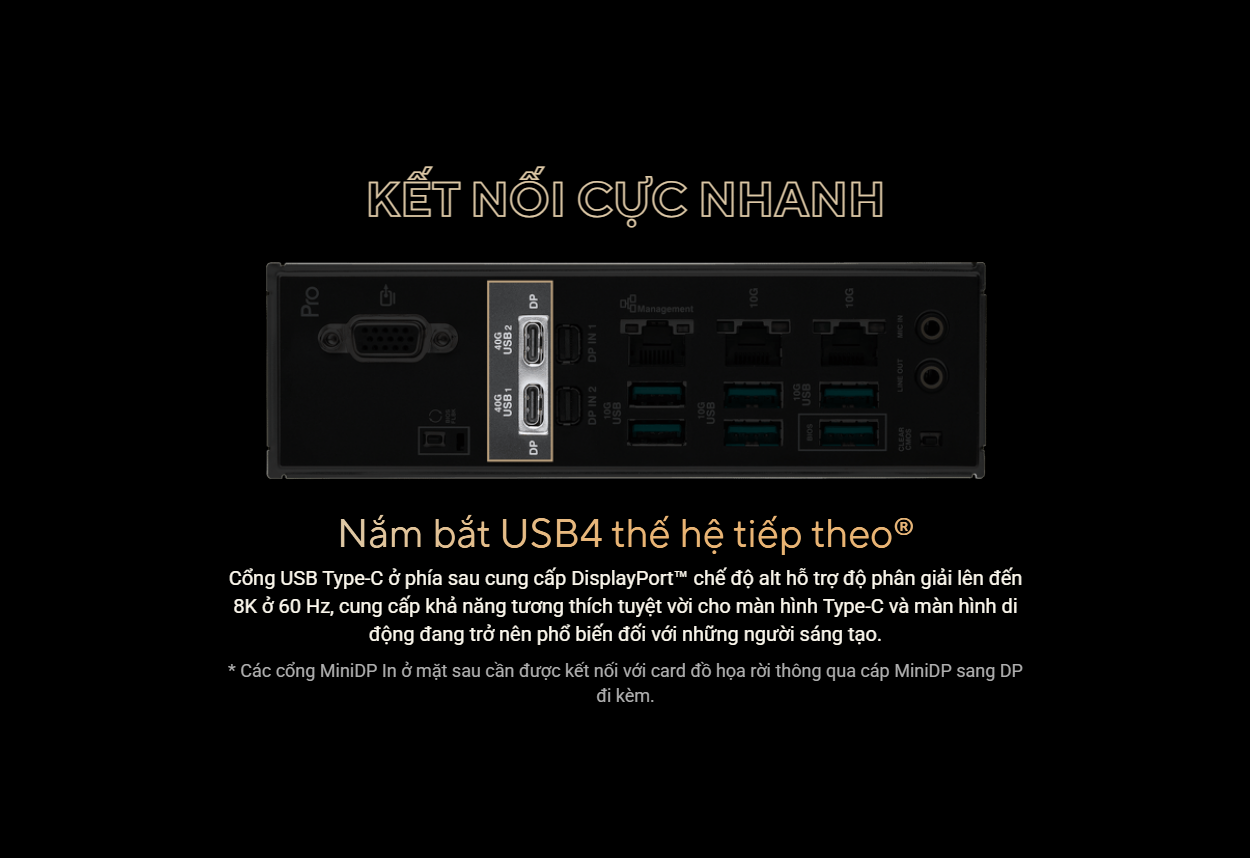

- 2 x USB 40Gbps (USB4) ports support USB Type-C display outputs*
- * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- ** Output at USB4 Type-C 40G USB 1 or USB4 Type-C 40G USB 2 ports, each requires a Mini DisplayPort IN to
- DisplayPort adapter cable. For more information on display connection and video output configuration using the Mini DisplayPort IN ports, please refer to the user manual.
- *** The display function of the Type-Cport depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.®®®®®®®
|
|
|
- Intel Xeon 690/670/650 Series Processors*®®

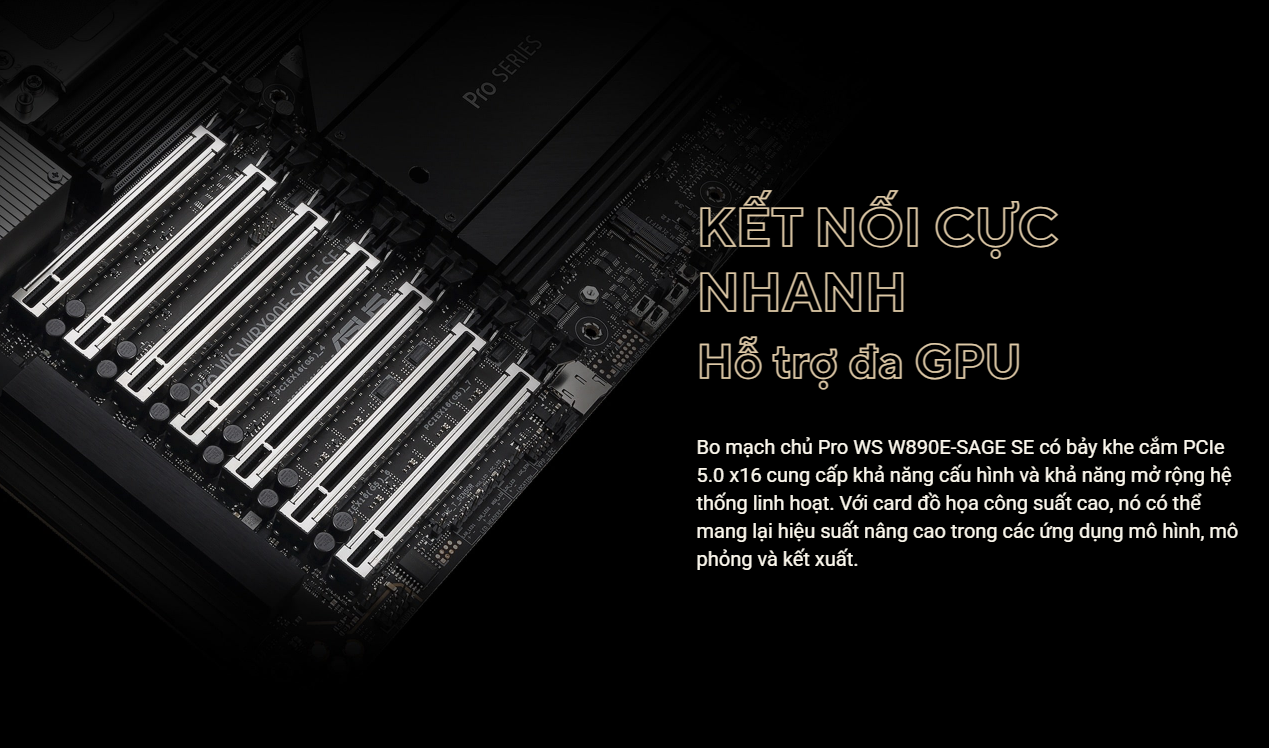

- 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
- Intel Xeon 630 Series Processor*®®
- 7 x PCIe 5.0 slot(s) (Seven at x16/x0/x16/x0/x16/x0/x16)**
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- * Specifications vary by CPU types.
- ** Please refer to the block diagrams in the Appendix for more details.
- *** CXL (Compute Express Link) is only supported in PCIEX16(G5)_1, PCIEX16(G5)_3, PCIEX16(G5)_5, and PCIEX16(G5)_7
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/ for the list of supported peripherals.
|
|
|
- Total supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb/s ports*
- Intel Xeon 690/670/650 Series Processors**®®
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- MCIO connector (supports PCIe 5.0 x8, and runs at x4/x4)
- Intel Xeon 630 Series Processor**®®
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- Intel W890 Chipset*®
- 2 x SlimSAS ports that support PCIe 4.0 x4 mode NVMe device
- 4 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
- ** Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (IntelVMD)
- *** Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.®®®®
|
|
|

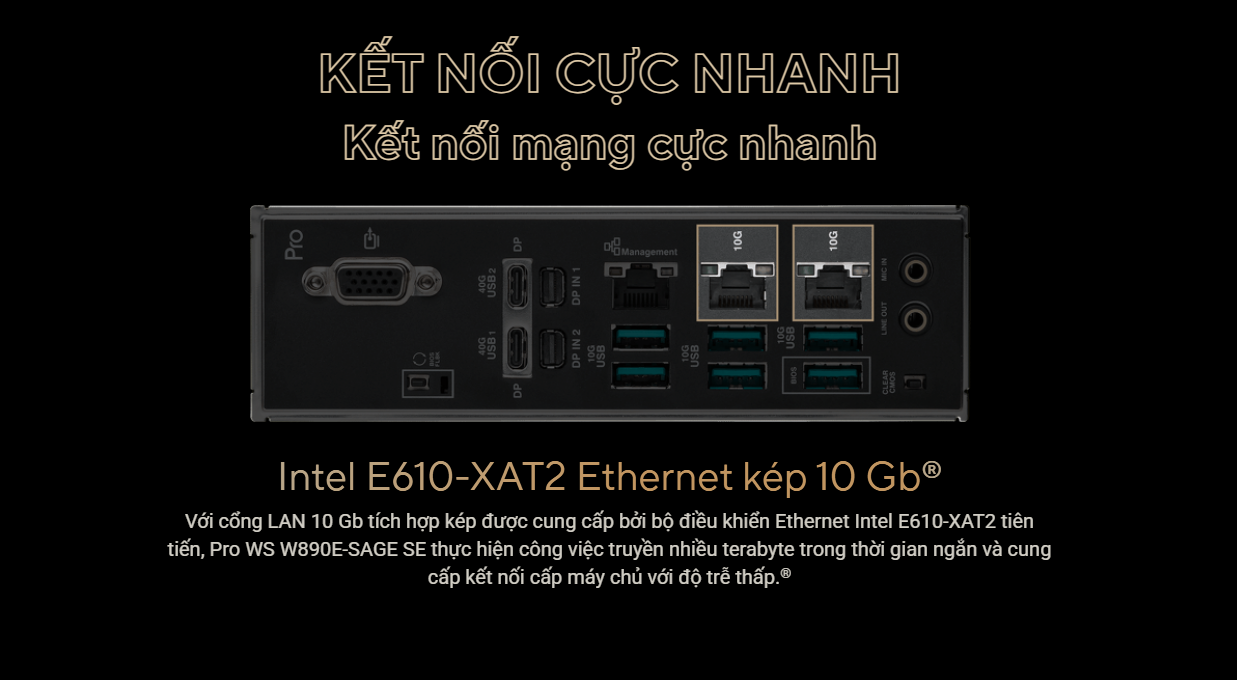

- 1 x Intel dual 10Gb Ethernet
- 1 x Realtek 1Gb Ethernet*
- ASUS LANGuard
- * This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported.®
|
|
|
- M.2 slot only (Key E, CNVi & PCIe)*
- * Wi-Fi module is sold separately.
|
|
|

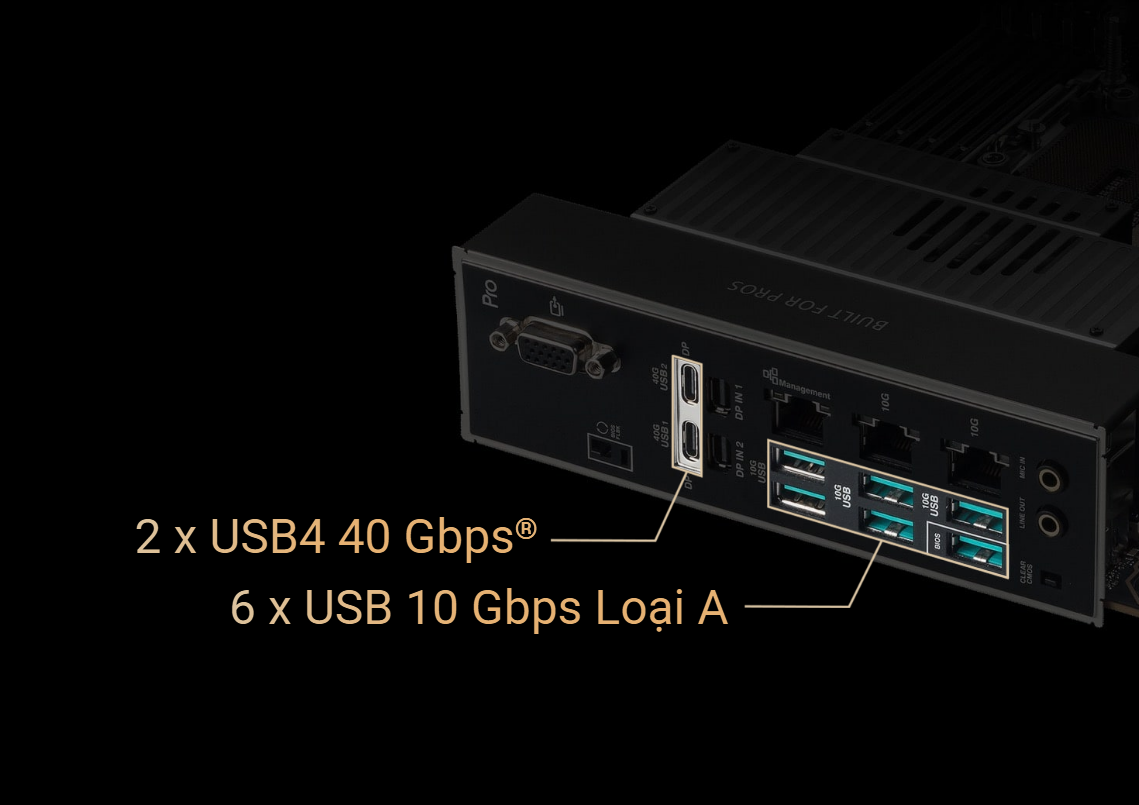

- Rear USB (Total 8 ports)
- 2 x USB4 (40Gbps) port(s) (2 x USB Type-C)
- 6 x USB 10Gbps port(s) (6 x Type-A)
- Front USB (Total 7 ports)

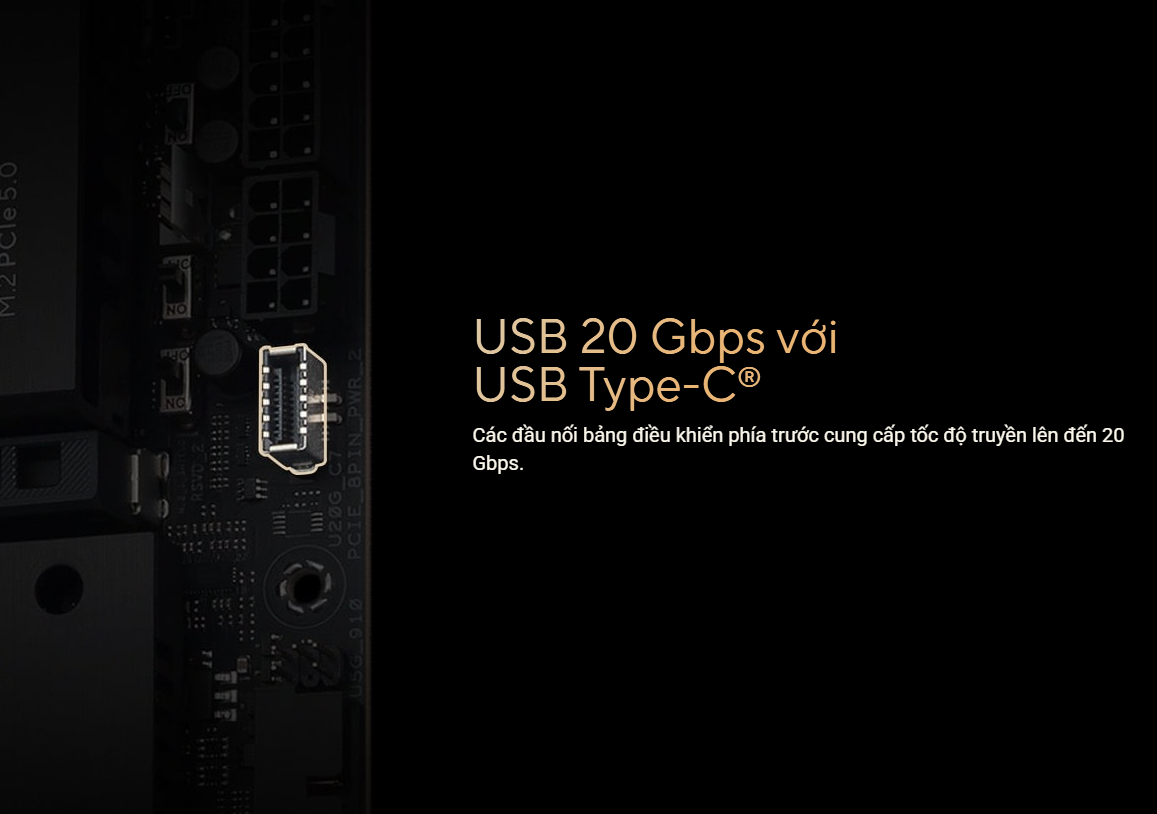

- 1 x USB 20Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
- * USB Type-C power delivery output: max. 5V/3A®®®®
|
|
|
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|
|
|

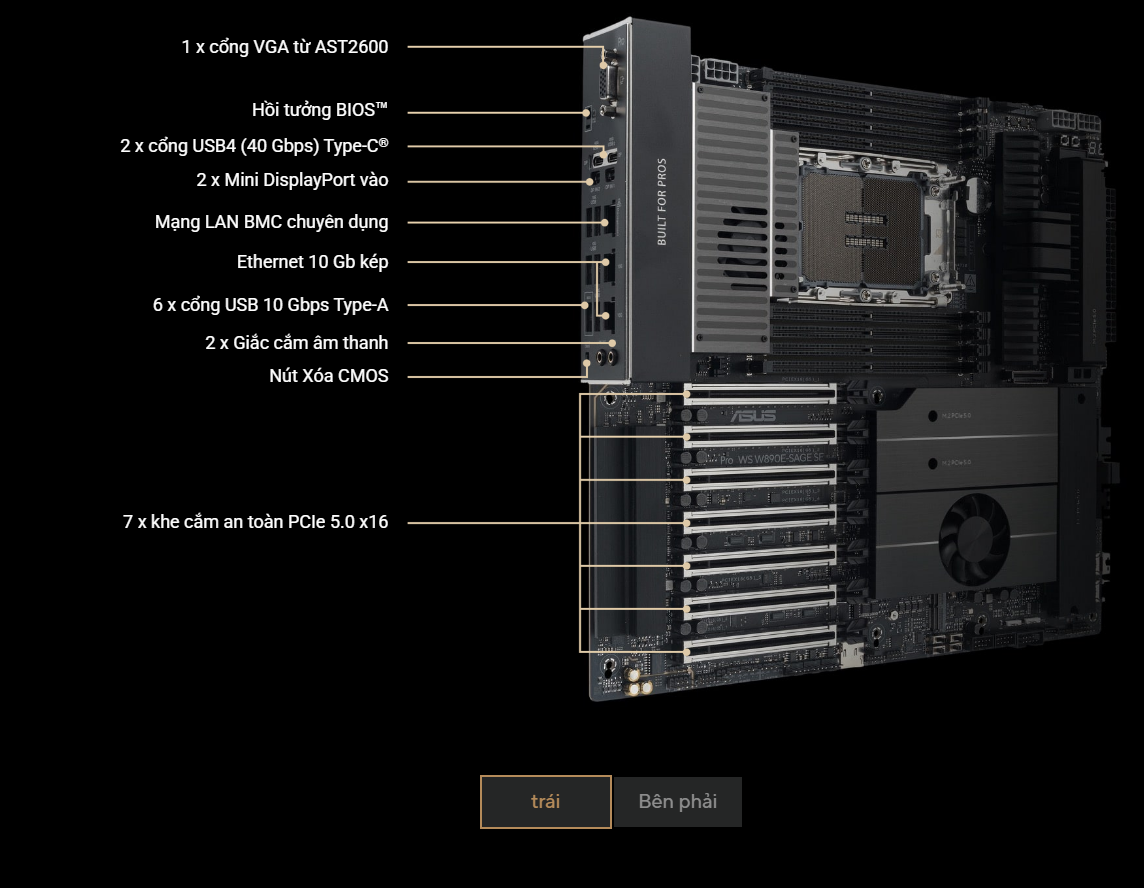

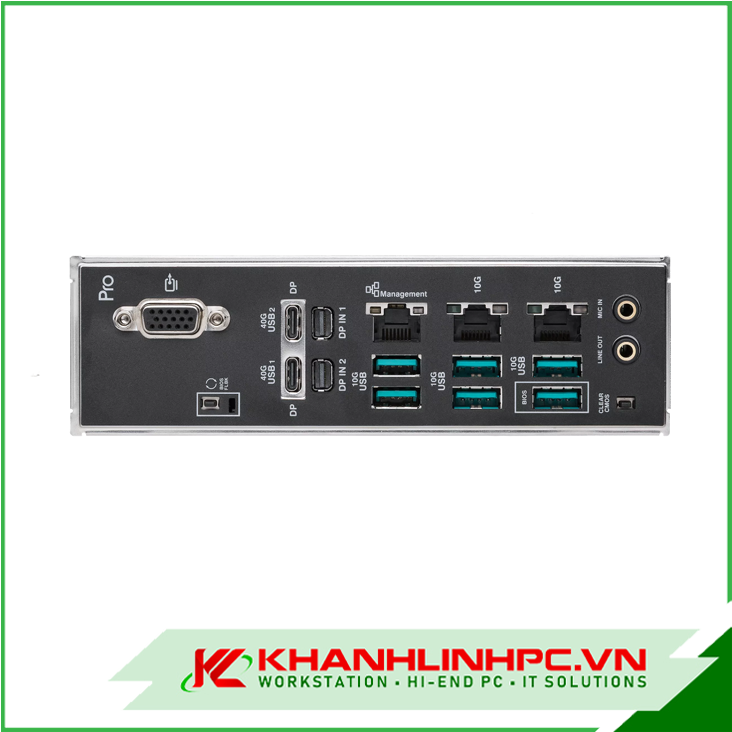

- 2 x USB4 (40Gbps) (2 x USB Type-C)
- 6 x USB 10Gbps port(s) (6 x Type-A)
- 1 x VGA port
- 2 x Mini DisplayPort IN
- 2 x Intel dual 10Gb Ethernet ports
- 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
- 2 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button®®®
|
|
|
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 5 x 4-pin Chassis Fan header(s)
- 1 x W_PUMP+ header(s)
- 2 x 4-pin VRM Fan header (with one of the VRM fans onboard)
- 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 4-pin to 24-pin Main Power connectors
- 2 x 8-pin +12V CPU Power connector
- 2 x 8-pin PCIe to CPU power connectors
- 2 x 8-pin PCIe Power connector
- Storage Related
- 4 x M.2 slots (Key M)
- 1 x MCIO connector
- 4 x SATA 6Gb/s ports
- 2 x SlimSAS connector
- USB
- 1 x USB 20Gbps connector (support(s) USB Type-C )
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
- Miscellaneous
- 2 x Addressable RGB Gen 2 header(s)
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x CPU Over voltage jumper
- 1 x Reset(FlexKey) button
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x LN2 Mode jumper
- 1 x M.2 slot (Key E)
- 7 x Probelt measurement points
- 1 x ReTry button
- 3 x RSVD header(s)/switch(s)
- 1 x Safe Boot button
- 1 x Slow Mode switch
- 1 x Start button
- 1 x 10-1 pin Front Panel System header
- 1 x RTC Battery header
- 1 x VROC key header
- 1 x Thermal Sensor header®
|
|
|
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - LANGuard
- - Overvoltage protection
- - SafeSlot
- - Stainless-steel back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - M.2 Q-Release
- - M.2 Q-Slide
- - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- - Q-Code
- - Q-Connector
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution

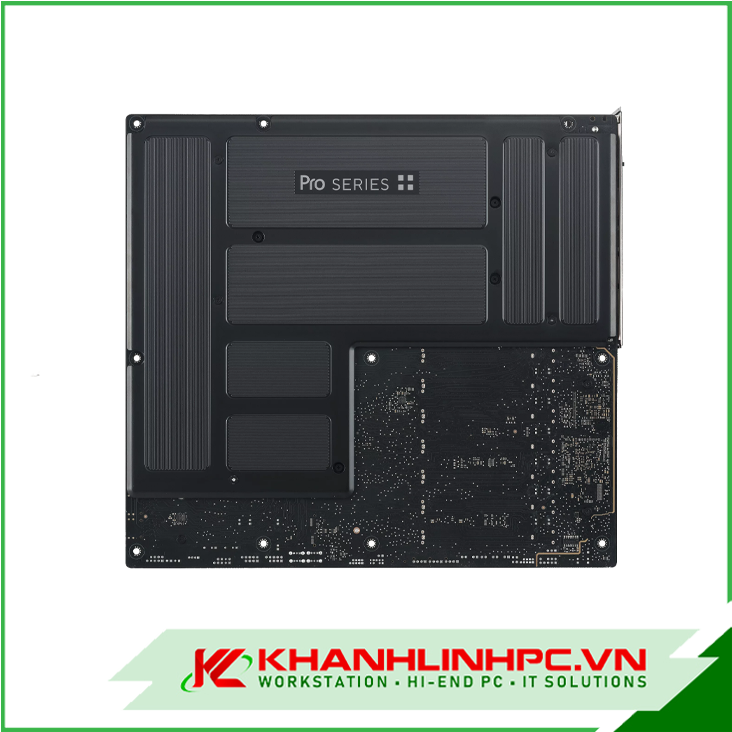

- - M.2 heatsink backplate
- - M.2 heatsink
- - Steel backplate
- - VRM heatsink design
- - Fan-based active cooling design for VRM and M.2 heatsinks
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Clear CMOS button
- - Dual DIMM clips
- - ProCool II
- - Pre-mounted I/O shield
- - SafeDIMM
- Aura Sync
- - Addressable RGB Gen 2 header(s)
- Bespoke Motherboard Design & Business Focused Features
- - 24/7 reliability
- - Overcurrent protection
|
|
|
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 4
- ASUS DriverHub
- - ASUS CPU-Z
- Adobe Creative Cloud (Free Trial)**
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUSTeK. EzFlash Utility
- FlexKey
- * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
- ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
|
- Remote Management Features
|
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- BMC Related
- 1 x BMC switch
- 1 x BMC LAN fixed IP switch
- 1 x Message LED header
- 1 x microSD card socket
- 2 x LAN LED header(s)
- 1 x Location LED header
- 1 x Location button header
- 1 x PSU_SMB header
- 1 x SMART_PSU switch
- 1 x VGA switch
- 1 x VPP_I2C header
- BMC LED Design
- - 1 x BMC LED
- - 1 x Message LED
- - 1 x Location LED
- - 1 x Location button LED
|
|
|
- 512Mb Flash ROM, UEFI AMI BIOS(text-based)
|
|
|
|
|
|
- Cables
- 2 x SATA 6Gb/s cables
- 1 x Thermistor cable pack
- 1 x 4-pin to 24-pin adapter cable for ATX power connector
- Additional Cooling Kit

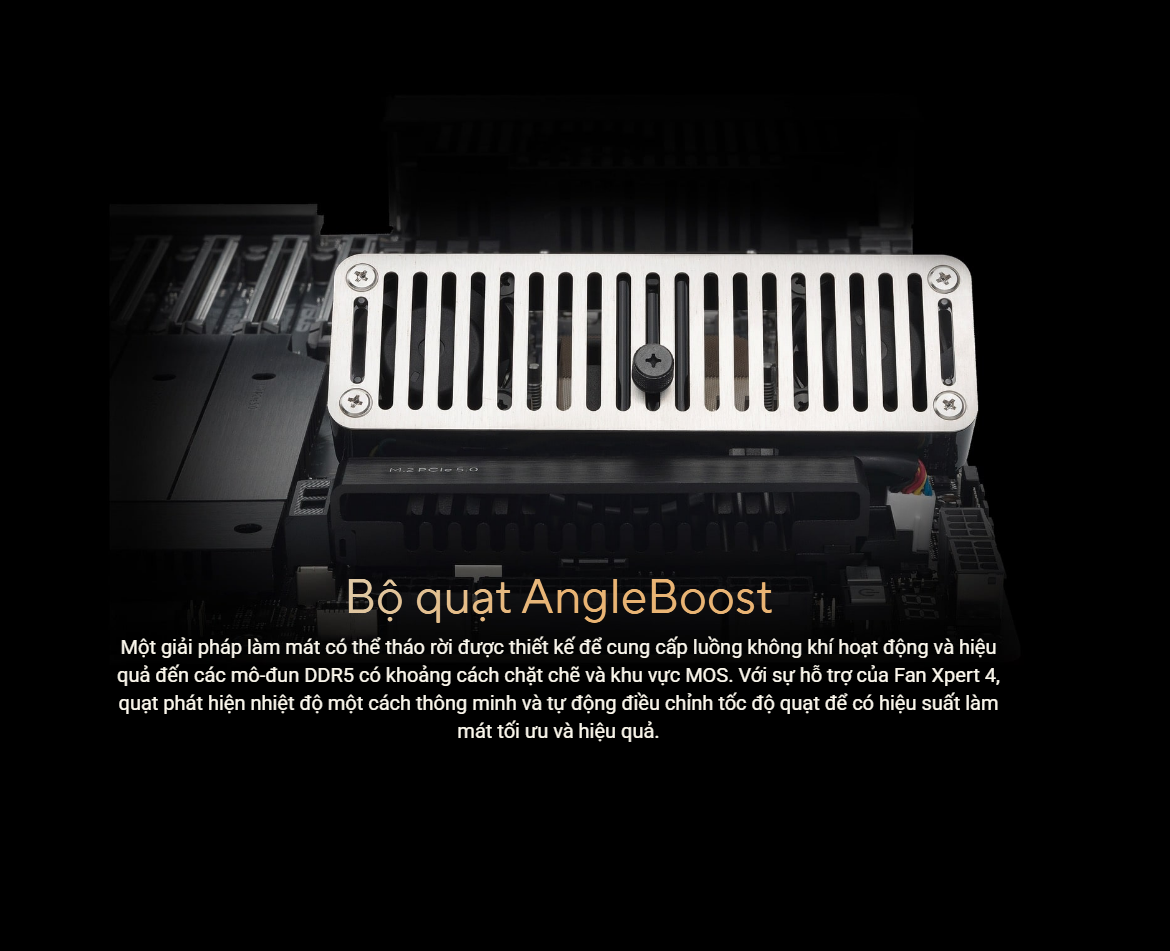

- 1 x AngleBoost Fan Kit
- 2 x Thermal pad for M.2 22110
- Miscellaneous
- 1 x Q-connector
- 1 x M.2 Q-Latch package(s)
- 1 x Screw package for M.2 Key E
- 1 x AMI license sticker
- 1 x M.2 backplate rubber package(s)
- 1 x E2A CPU carrier (for Intel® Xeon 690 Series Processors)
- 1 x E2B CPU carrier (for Intel® Xeon 670/650/630 Series Processors)
- Documentation
- 1 x ACC Express activation key card
- 1 x Quick start guide®®
|
|
|
|
|
|
- EEB Form Factor
- 12 inch x 13 inch (30.5 cm x 33 cm)
|
