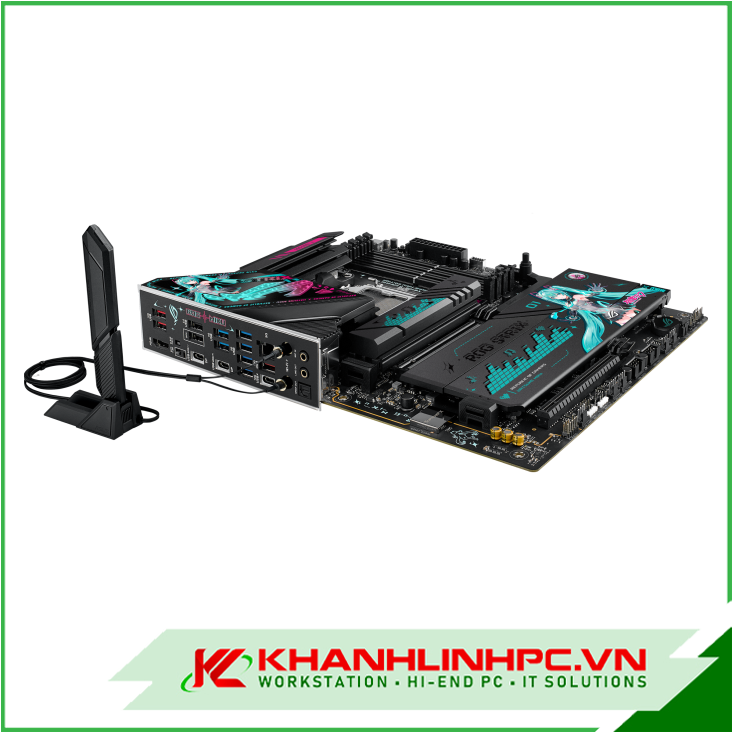

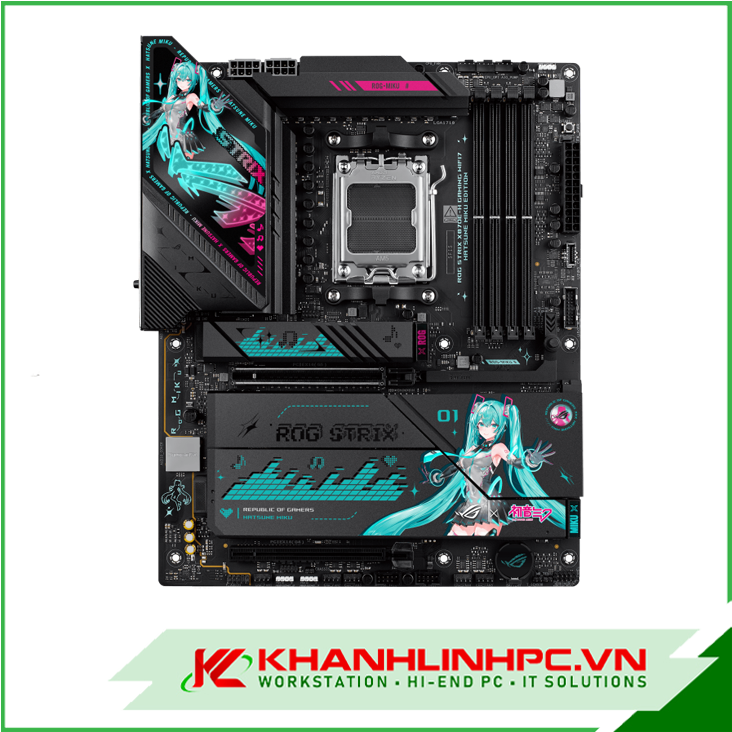

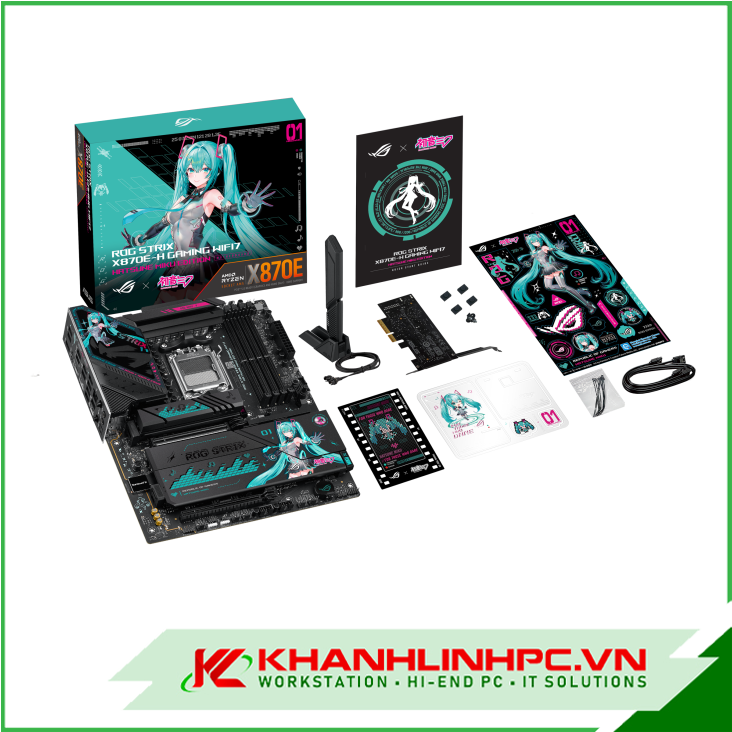

Mainboard ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION

14,730,000 đ

Thông tin cơ bản:

- Socket: AMD Socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors
- Kích thước: ATXKhe cắm RAM: 4 khe (Tối đa 256GB)
- Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Khe cắm ổ cứng: 4 x M.2 slot, 4 x SATA 6Gb/s ports
- Bảo hành: 36 tháng

Tổng: 14,730,000^đ

Thêm vào giỏ Mua ngay

Hình Thức Thanh Toán

Yên Tâm Mua Hàng

- Sản Phẩm Chính Hãng

- Đa Dạng Hình Thức Thanh Toán

- Nhiều Dòng Sản Phẩm

- Hỗ Trợ Trả Góp 0%

Chính Sách Giao Hàng

GIAO HÀNG

Miễn phí giao hàng trong nội thành TP.HCM bán kính 5km với hoá đơn trên 5.000.000đ.

ĐỔI TRẢ

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất.

Thông tin Sản Phẩm

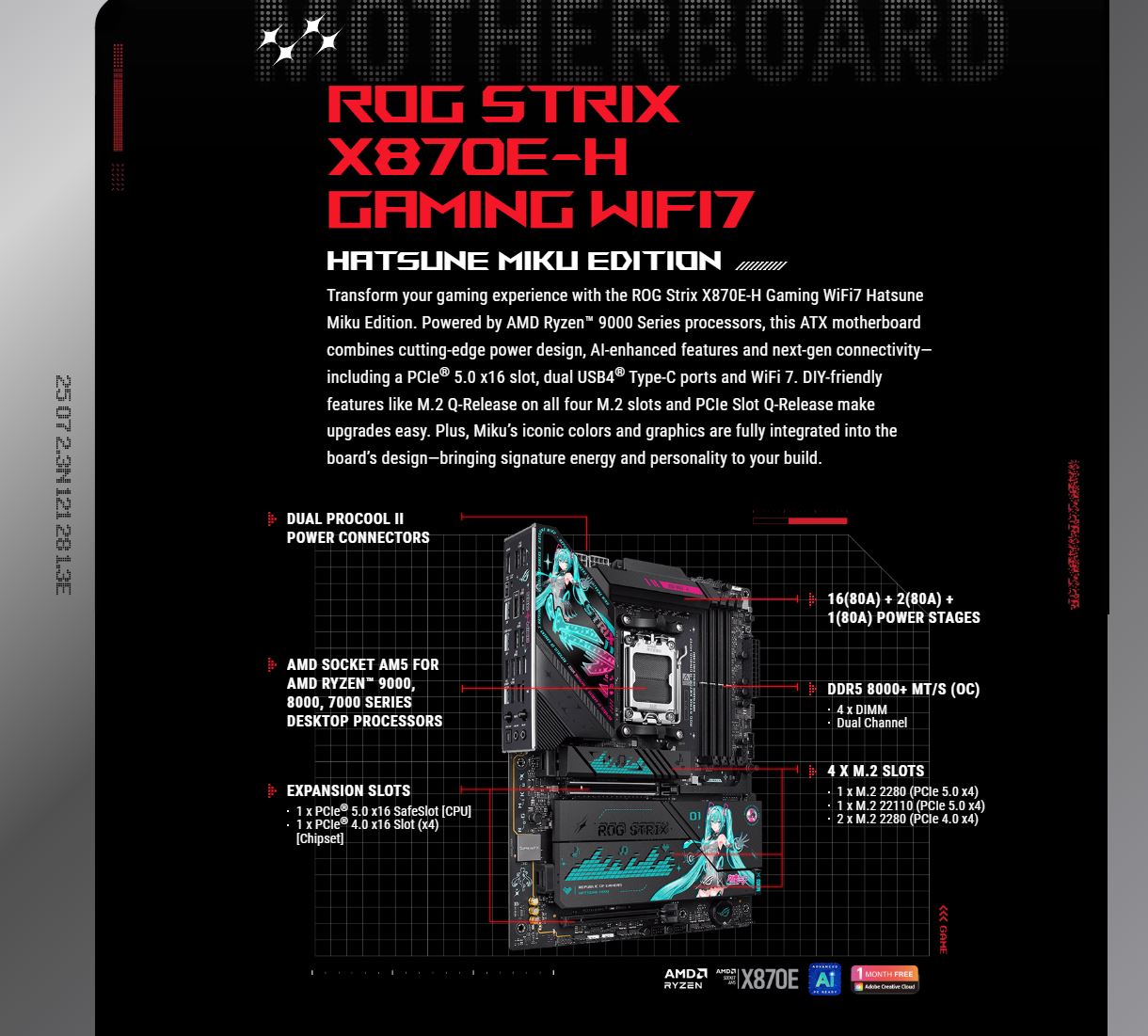

Thông số kỹ thuật:

Tên Hãng	ASUS
CPU hỗ trợ	AMD
Chipset	AMD X870E
RAM hỗ trợ	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP)
Khe cắm mở rộng	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Ổ cứng hỗ trợ	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supports)** AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

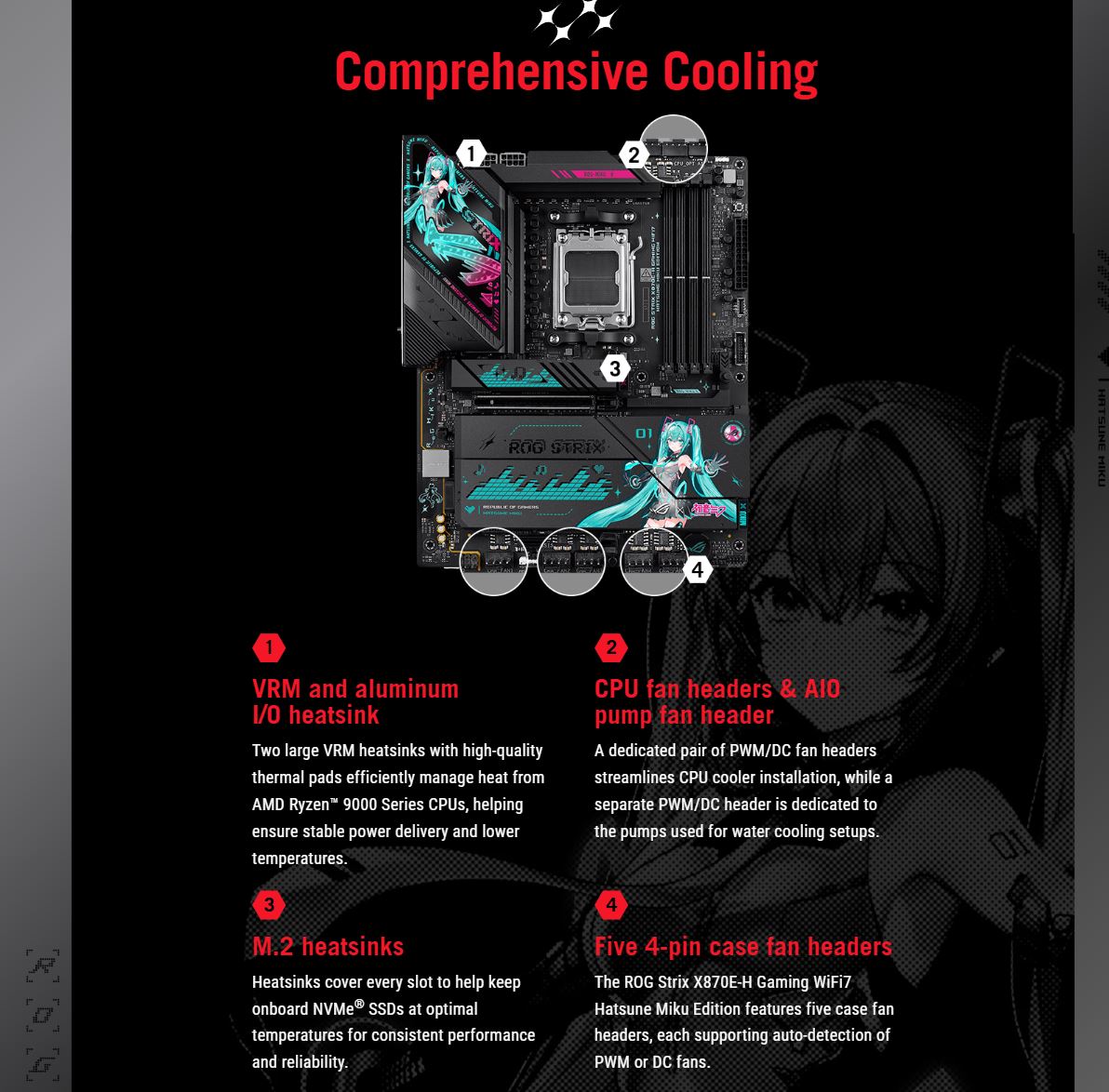

Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	2 x USB4® (40Gbps) ports(2 x USB Type-C®) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
LAN / Wireless	1 x Realtek 5Gb Ethernet ASUS LANGuard Wi-Fi 7 (MediaTek MT7925) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
