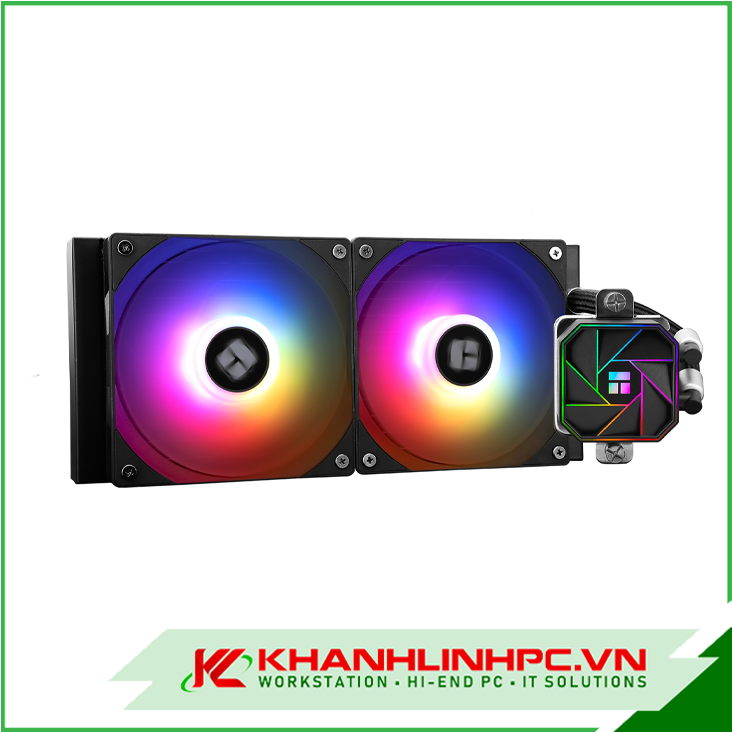

Dimensions

Cold row: 277X120X27MM
Cold head: 72X72X52.5MM
Water pipe: 450MM

Pump parameters

Speed: 2800RPM±10%
Working voltage: 12V
DC Rated current: 0.24 ± 20%
Operating noise: ≤30dBA
Water pump interface: +12VDC/3pin
ARGB interface: +5V/3pin
Pump life: 40000Hours

Fan parameters

Size: 120X120X25MM
Speed: 2150RPM ± 10% (MAX)
Rated current: 12V DC
Wind pressure: 2.87mm H20 (MAX)
Air volume: 69CFM (MAX)
Operating noise: ≤28.3DBA
Fan interface: 4pin PWM
Fan bearing: S-FDB bearing
