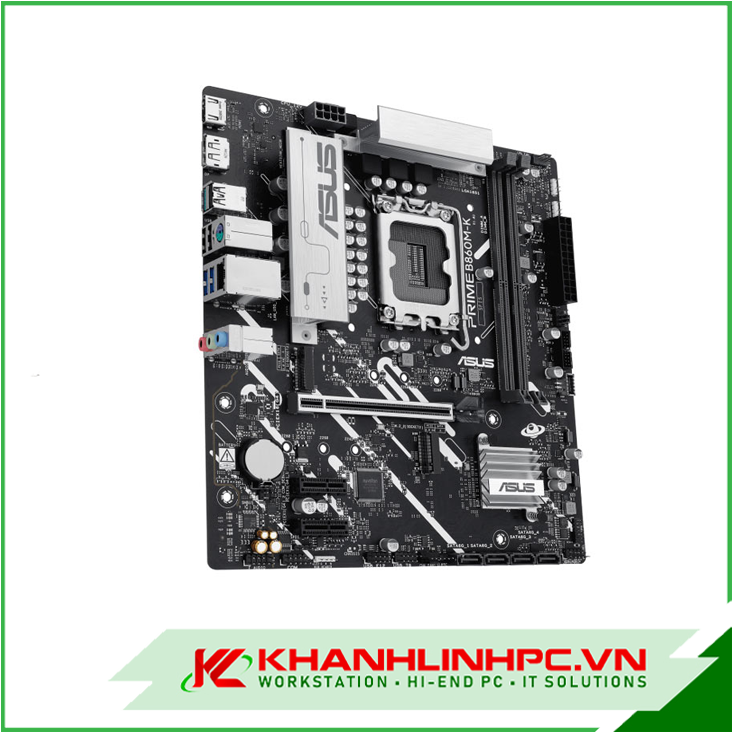

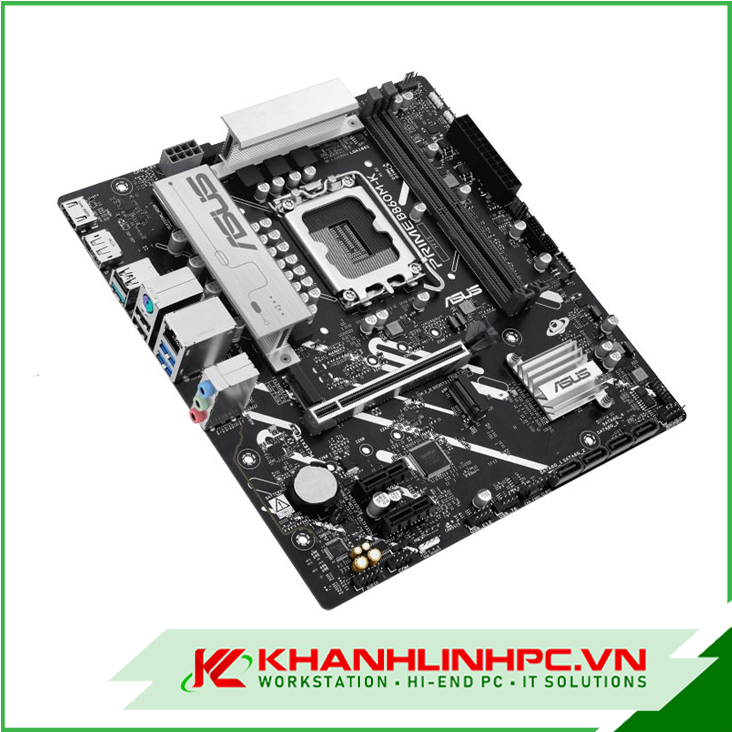

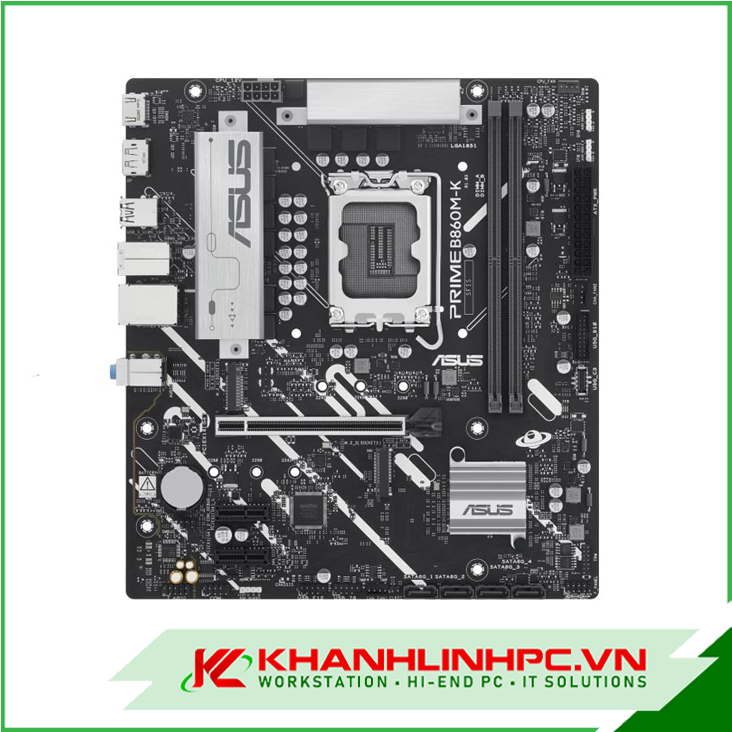

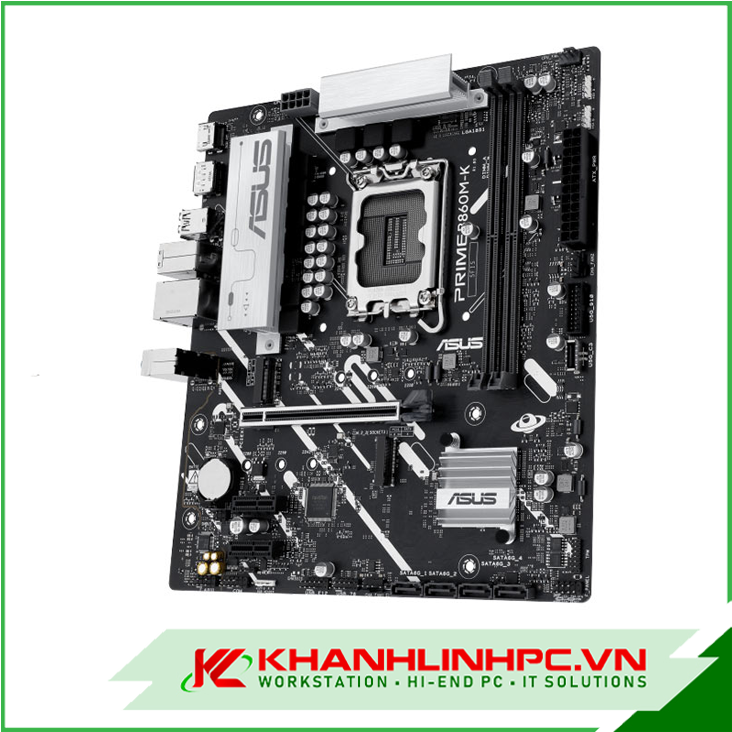

Mainboard Asus PRIME B860M-K-CSM DDR5

44%

3,599,000 đ 5,169,000 đ

Thông tin cơ bản:

- Chipset: Intel B860Kích thước: micro-ATX
- Khe cắm RAM: 2 x DIMM slots, max. 128GB, DDR5
- Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot; 2 x PCIe 4.0 x1 slots
- Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Hệ điều hành: Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
- Bảo hành: 36 tháng

Tổng: 3,599,000^đ

Thêm vào giỏ Mua ngay

Hình Thức Thanh Toán

Yên Tâm Mua Hàng

- Sản Phẩm Chính Hãng

- Đa Dạng Hình Thức Thanh Toán

- Nhiều Dòng Sản Phẩm

- Hỗ Trợ Trả Góp 0%

Chính Sách Giao Hàng

GIAO HÀNG

Miễn phí giao hàng trong nội thành TP.HCM bán kính 5km với hoá đơn trên 5.000.000đ.

ĐỔI TRẢ

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất.

Thông tin Sản Phẩm

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B860 Chipset
RAM hỗ trợ	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)
Đồ họa	1 x DisplayPort 1 x HDMI port
Khe cắm mở rộng	Intel Core Ultra Processors(Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
ETHERNET	1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (Total 6 ports) - 1 x USB 10Gbps port (1 x Type-A) - 2 x USB 5Gbps ports (2 x Type-A) - 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) - 1 x USB 5Gbps connector (supports USB Type-C) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 port Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Cổng kết nối (Back Panel)	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Âm thanh	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Kích cỡ	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B860 Chipset
RAM hỗ trợ	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)
Đồ họa	1 x DisplayPort 1 x HDMI port
Khe cắm mở rộng	Intel Core Ultra Processors(Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
ETHERNET	1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (Total 6 ports) - 1 x USB 10Gbps port (1 x Type-A) - 2 x USB 5Gbps ports (2 x Type-A) - 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) - 1 x USB 5Gbps connector (supports USB Type-C) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 port Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Cổng kết nối (Back Panel)	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Âm thanh	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Kích cỡ	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
