Mainboard Asus TUF GAMING B860M-PLUS DDR5

47%

4,850,000 đ 7,149,000 đ

Thông tin cơ bản:

  • - Chipset: Intel B860Kích thước: mATX
  • - Khe cắm RAM: 4 x DIMM slots, max. 256GB, DDR5
  • - Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot
  • - Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • - Hệ điều hành: Windows 11, Windows 10 64-bit
  • - Bảo hành: 36 tháng
Tổng: 4,850,000đ
Thêm vào giỏ Mua ngay
Hình Thức Thanh Toán

Yên Tâm Mua Hàng

- Sản Phẩm Chính Hãng

- Đa Dạng Hình Thức Thanh Toán

- Nhiều Dòng Sản Phẩm

- Hỗ Trợ Trả Góp 0%

Chính Sách Giao Hàng

GIAO HÀNG

Miễn phí giao hàng trong nội thành TP.HCM bán kính 5km với hoá đơn trên 5.000.000đ.


ĐỔI TRẢ

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất.

Thông số kỹ thuật:

  • Sản phẩm
  • Bo mạch chủ
  • Tên Hãng
  • ASUS
  • CPU hỗ trợ
  • Support Intel Core Ultra Processors (Series 2) , LGA1851
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset
  • Intel B860 Chipset
  • RAM hỗ trợ
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
  • Đồ họa
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
  • Khe cắm mở rộng
  • Intel Core Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel B860 Chipset
  • 1 x PCIe 4.0 x4 slot
  • Ổ cứng hỗ trợ
  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel Core Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • Intel B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • ETHERNET
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
  • USB
  • Rear USB (Total 8 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 ports (1 x Type-A)
  • Front USB (Total 8 ports)
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 headers support 2 additional USB 2.0 ports
  • Cổng kết nối (Internal)
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage Related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thunderbolt (USB4) header

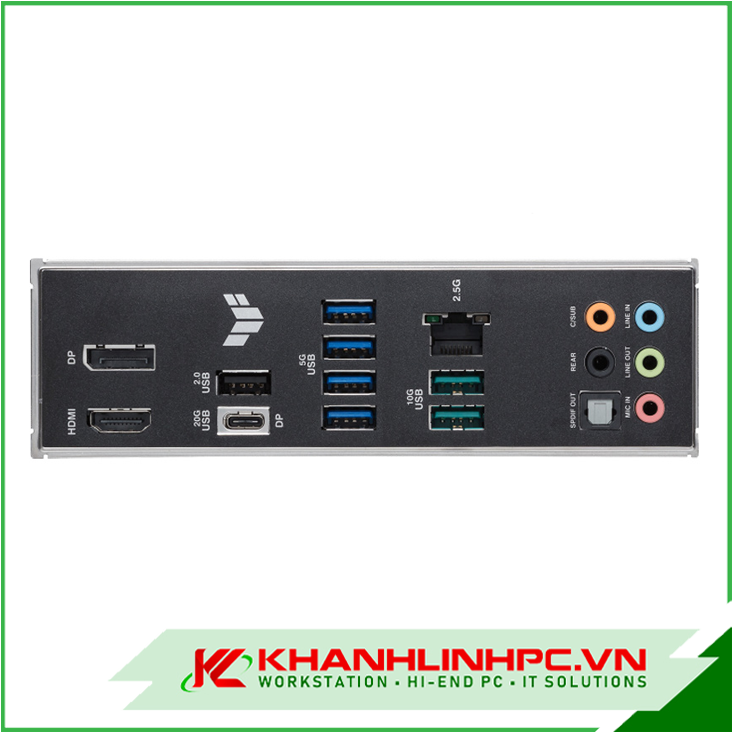

  • Cổng kết nối (Back Panel)
  • 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • Âm thanh
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • Kích cỡ
  • mATX Form Factor
  • 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Thông số kỹ thuật:

  • Sản phẩm
  • Bo mạch chủ
  • Tên Hãng
  • ASUS
  • CPU hỗ trợ
  • Support Intel Core Ultra Processors (Series 2) , LGA1851
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset
  • Intel B860 Chipset
  • RAM hỗ trợ
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
  • Đồ họa
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
  • Khe cắm mở rộng
  • Intel Core Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel B860 Chipset
  • 1 x PCIe 4.0 x4 slot
  • Ổ cứng hỗ trợ
  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel Core Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • Intel B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • ETHERNET
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
  • USB
  • Rear USB (Total 8 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 ports (1 x Type-A)
  • Front USB (Total 8 ports)
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 headers support 2 additional USB 2.0 ports
  • Cổng kết nối (Internal)
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage Related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thunderbolt (USB4) header
  • Cổng kết nối (Back Panel)
  • 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • Âm thanh
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • Kích cỡ
  • mATX Form Factor
  • 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
