- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Max. overclocking frequency:
- • 1DPC 1R Max speed up to 8600+ MT/s
- • 1DPC 2R Max speed up to 7200+ MT/s
- • 2DPC 1R Max speed up to 4800+ MT/s
- • 2DPC 2R Max speed up to 4800+ MT/s
|
|
|

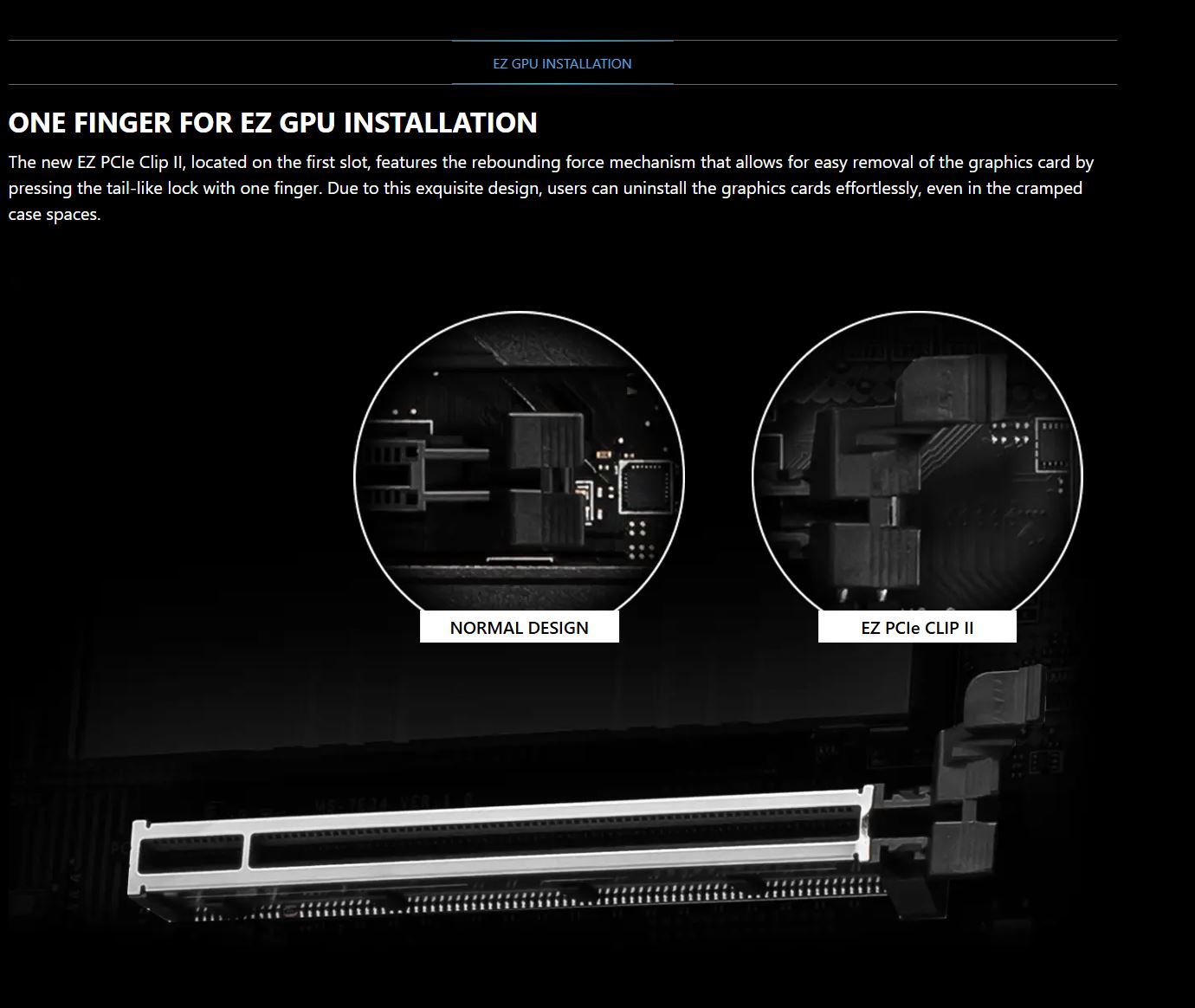

- 4x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
|
|
|
- 3x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G
|
|
|
- 1x Thunderbolt5 card connector(JTBT5, support RTD3)
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 4x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 20Gbps Type C ports
|
- Cổng kết nối (Back Panel)
|
- DisplayPort
- USB 5Gbps Type-A
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- HDMI™
- Thunderbolt™ 4 40Gbps (Type-C)
- USB 20Gbps Type-C
- USB 5Gbps Type-A
|
|
|
- Realtek® 8125D 2.5Gbps LAN
- Intel® Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
-
- Supports Bluetooth® 5.4**, MLO, 4KQAM
|
|
|
|
